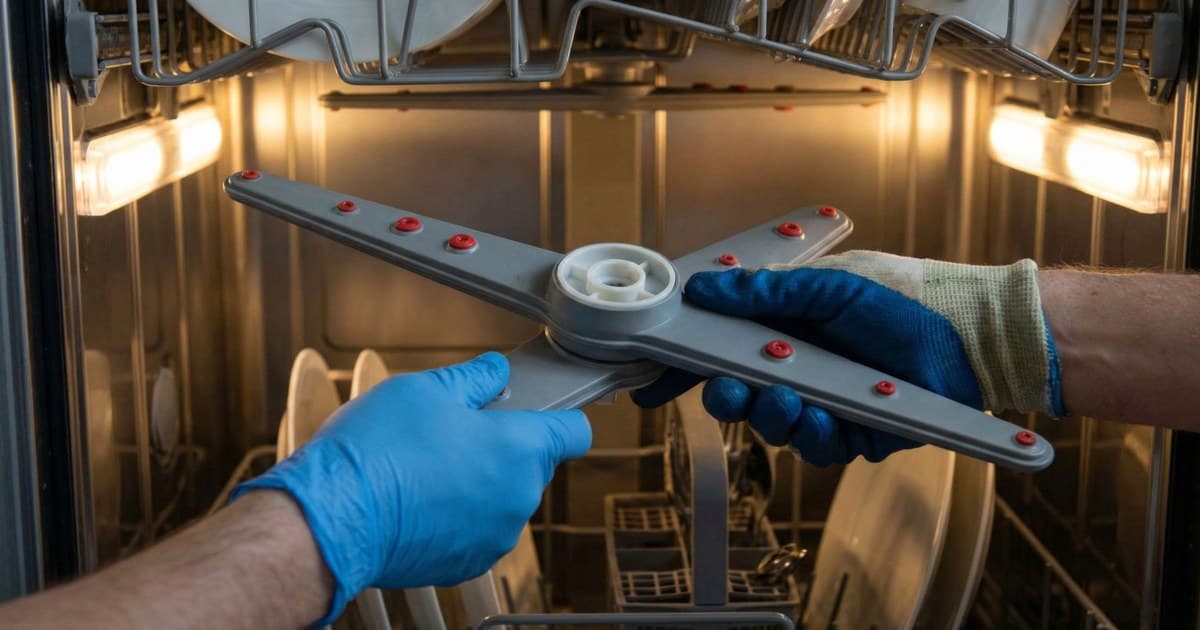

How to Replace a Dishwasher Spray Arm (And Why Dishes on the Top Rack Stay Dirty)

The dishwasher spray arm is one of the most underappreciated parts of the machine — until it stops working. When a customer tells me their dishwasher "stopped cleaning properly," and specifically that the top rack dishes are coming out with food still on them, I know before I even open the door what I'm going to find.

It's almost always the upper spray arm. Clogged, cracked, or cracked at the hub so it doesn't spin. This is also one of the most satisfying fixes in appliance repair: a $20 part, 20 minutes of work, and the machine performs like new.

Understanding the Spray Arm System

Most dishwashers have two or three spray arms:

1. Lower spray arm — mounted at the bottom of the tub, rotates and sprays the lower rack. This is the largest arm and the easiest to access.
2. Upper spray arm (middle arm) — mounted below the upper rack, often attached to the back wall or to the upper rack assembly. This arm washes the top rack dishes.
3. Top nozzle (some models) — a fixed or rotating spray nozzle on the ceiling of the tub that washes the upper rack from above.

When only the top rack dishes are dirty, the upper spray arm is the culprit. When only the bottom rack dishes are dirty, look at the lower arm. When nothing cleans well and the water smells bad, you may have a drain issue — see our Whirlpool dishwasher not draining guide for a full drainage diagnostic.

Symptoms That Point to a Spray Arm Problem

• Dishes on the top rack consistently have food residue, while bottom rack dishes come out clean
• Visible white mineral deposits (calcium scale) on the arm holes
• Spray arm that wobbles, doesn't spin freely, or has a visible crack
• A cracking or clicking sound during the wash cycle (arm hitting the rack or an obstruction)
• Water not reaching the back of the dishwasher (arm holes pointing the wrong direction because the arm won't rotate)

Step 1: Remove the Spray Arm

Turn off the dishwasher and open the door fully. Pull the upper rack out to its full extension for access.

Most brands: The upper spray arm clips onto a threaded mount at the top of the lower spray arm assembly, or snaps onto a nipple at the back wall of the tub. Look for how it's attached — either a clip ring you rotate counterclockwise, or a nut you unscrew.

Whirlpool/Maytag/KitchenAid: The upper spray arm on most Whirlpool-platform dishwashers (WDT, WDF, KDFE, KDTE series) attaches to the upper wash arm support with a friction-fit hub. Pull straight down. No tools required.

Bosch: Bosch upper arms typically attach with a quarter-turn bayonet mount. Grip the arm, push up slightly, and rotate counterclockwise to release. Bosch arms are known for durability but the mounting hubs can crack after years of thermal cycling.

Samsung: Samsung DW series upper spray arms usually unclip by pressing a center tab while pulling down. The arm assembly on Samsung often includes the mount hub as one piece — replace the whole assembly, not just the arm.

GE: Most GE upper arms unscrew counterclockwise from a threaded center post. Some older GE models require lifting the upper rack off its rails to access the arm fully.

Lower spray arm removal is similar but usually simpler — most lower arms lift straight up off a center post with no tools at all.

Step 2: Inspect for Clogs Before You Order a Replacement

Before you spend $20 on a new arm, determine whether cleaning will solve the problem.

Check each spray hole: Hold the arm up to a bright light. The holes (called nozzle orifices) should be clear. Common obstructions: calcium/mineral deposits (white powder or hard crusty buildup), food particles, broken glass fragments, fruit pits, and labels from jars.

To clean mineral deposits: Soak the arm in white vinegar for 30 minutes to an hour. The acetic acid dissolves calcium scale. After soaking, use a toothpick or thin wire to clear any holes that are still blocked. Rinse thoroughly.

To clear food debris: Run water through the arm hub while blocking individual holes with your finger to build up pressure. Use a toothpick or wooden skewer to clear stubborn debris.

Spin test: After cleaning, remount the arm and spin it by hand. It should rotate freely with minimal friction. If it binds or wobbles on the hub, the hub bearing surface is worn and replacement is warranted.

Step 3: Order the Right Replacement

This is where homeowners most often make mistakes. Spray arm part numbers are model-specific. A generic "universal" spray arm from Amazon may look right and fit the hub, but nozzle angles and flow patterns differ. I recommend buying OEM (original equipment manufacturer) parts or verified compatible aftermarket.

Finding your model number: Open the dishwasher door and look for the model number label on the door jamb — on the side edge of the door, or on the inner panel. It's usually a white sticker with a 10-14 digit alphanumeric model number.

Part number lookup: Use the model number at RepairClinic, PartSelect, or AppliancePartsPros. Search for "upper spray arm" or "wash arm" with your model number. These sites have parts diagrams that show exactly which part fits which position.

Common part numbers by brand:

• Whirlpool WDT series — W10082853 (upper spray arm) or WPW10082853 (OEM)
• KitchenAid KDTE, KDFE series — WPW10082853 (same as Whirlpool)
• Maytag MDB series — same Whirlpool W10082853 platform
• Bosch 500, 800 series (SHPM, SHEM) — 00611475 or 611475 (upper spray arm)
• Bosch 300 series (SHE, SHV) — 00611474 or compatible
• Samsung DW80 series — DD82-01040A (upper spray arm assembly)
• GE GDT, GDF series — WD22X30233 (upper spray arm)
• LG LDF, LDT series — 5220DD1004E

Step 4: Install the New Spray Arm

Installation is the reverse of removal. A few things to verify:

• Hub seats fully: Push the arm onto the mount hub firmly until it clicks or locks. A partially seated arm will wobble during operation and may spray water onto the door gasket instead of the dishes.
• Rotation test before closing: Spin the new arm by hand. It should rotate 360° freely with light resistance. If it catches on a rack tine, adjust the arm position on the hub.
• Load test: After installation, run a short wash cycle and open the door mid-cycle to confirm the arm is spinning. You'll hear the rotation if you listen for it. A stationary arm with water flowing means the hub isn't gripping properly.

Upper rack position matters: On some dishwashers, especially Bosch, the upper rack height affects whether the upper spray arm can rotate freely. If the arm catches on dishes after installation, lower the upper rack to the next position down.

When Spray Arm Replacement Doesn't Fix It

If you've replaced the spray arm and the top rack dishes are still dirty, the issue is water pressure, not the arm. Check:

• Water inlet valve: Low water pressure in the machine produces anemic spray. The valve may be partially clogged with mineral scale at the inlet screen.
• Pump and wash motor: Reduced motor output means reduced spray pressure. A failing wash motor will clean less effectively even through clean arms.
• Hard water buildup inside the machine: Calcium deposits inside the spray arm hub, inside the pump housing, and on the tub walls reduce performance over time. Run two cycles with a dishwasher descaler (Affresh or similar) before concluding you have a mechanical problem.

Why are my dishes dirty on the top rack but clean on the bottom?▾

The top rack is washed by the upper spray arm — the rotating arm mounted below the top rack or in the center of the tub ceiling. When that arm is clogged or broken, water never reaches the top rack dishes properly. The lower spray arm (which washes bottom rack dishes) is often unaffected. Clean or replace the upper arm and the symptom resolves.

How do I know if my spray arm is clogged or broken?▾

Remove the spray arm and hold it up to light. The small holes along the arm should be clear. If you see mineral deposits (white crusty buildup) or food debris blocking the holes, cleaning may restore it. If the arm is cracked, warped, or won't spin freely on its mounting hub, replacement is the right call.

Can I run a dishwasher without a spray arm?▾

No. Without a functioning spray arm, the dishwasher will not clean dishes adequately and may run with reduced water circulation that can stress the pump. Replacement arms are inexpensive ($15-40) and the fix takes less than 30 minutes.
